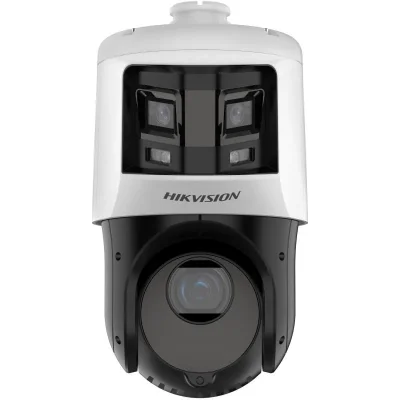

กล้องวงจรปิด HIKVISION รุ่น DS-2SE4C425MWG-E/26(F0) : TandemVu 6+4MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome

กล้องวงจรปิด HIKVISION รุ่น DS-2SE4C425MWG-E/26(F0)
TandemVu 6+4MP 25X ColorVu & IR Acusense Panoramic Network Speed Dome
Captures a large area and great details at the same time
High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
Secures an expansive area with 25× optical zoom and 16× digital zoom
Expansive night view with up to 100 m IR distance & 30 m white light
Supports 12V DC & PoE+
Focuses on human and vehicle targets classification based on deep learning
Specification
Camera
Image Sensor
[Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
Max. Resolution
[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1 s to 1/30,000 s
Day & Night
ICR
Zoom
[PTZ channel] 25 × optical, 16 × digital
Slow Shutter
Yes
Lens
Focal Length
[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
FOV
[Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;
[PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
Focus
semi-auto||manual||auto
Aperture
[Bullet channel]: F1.0; [PTZ channel]: F1.6
Zoom Speed
[PTZ channel]: approx. 3.6 s
Illuminator
Supplement Light Type
[PTZ channel]: IR; [Bullet channel]: White Light
Supplement Light Range
[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
Smart Supplement Light
Yes
PTZ
Movement Range (Pan)
360°
Movement Range (Tilt)
-15° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed
tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Pan
Yes
Presets
300
Preset Freezing
Yes
Patrol Scan
8 patrols, up to 32 presets for each patrol
Pattern Scan
4 pattern scans
Park Action
preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
3D Positioning
Yes
PTZ Status Display
Yes
Scheduled Task
preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Power-off Memory
Yes
Video
Main Stream
[Bullet] 50 Hz: 25 fps（3632×1632, 3680×1656）, 60 Hz: 30 fps（3632×1632, 3680×1656）
[PTZ] 50 Hz: 25 fps（2560×1440, 1920×1080, 1280×960, 1280×720）, 60 Hz: 30 fps（2560×1440, 1920×1080, 1280×960, 1280×720）
Sub-Stream
[Bullet] 50 Hz: 25 fps（1200×536, 960×432）, 60 Hz: 30 fps（1200×536, 960×432）
[PTZ] 50 Hz: 25 fps（704×576, 640×480, 352×288）, 60 Hz: 30 fps（704×480, 640×480, 352×240）
Third Stream
[Bullet] No
[PTZ] 50 Hz: 25 fps（1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288）, 60 Hz: 30 fps（1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240）
Video Compression
H.265 || H.264 || MJPEG
Video Bit Rate
32 kbps to 16384 kbps
H.264 Type
baseline profile || main profile || high profile
H.265 Type
main profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
8 fixed regions for each stream
Audio
Audio Compression
G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
Audio Bit Rate
MP2L2: 32192 Kbps, AAC-LC: 1664 Kbps, MP3: 8320 Kbps
Audio Sampling Rate
PCM: 8/16/32/48 kHz; Others: as per codec
Environment Noise Filtering
Yes
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Simultaneous Live View
20
API
ISAPI, SDK, ISUP, ONVIF
User/Host
32
Security
Authenticated username/password, MAC binding, HTTPS encryption, 802.1X access, IP filter
Network Storage
NAS (NFS, SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect
Web Browser
IE11+, Chrome57+, Firefox52+, Safari12+, Edge79+
Image Parameters Switch
Yes
Image Settings
Sharpness, Saturation, Brightness, Contrast
Day/Night Switch
day, night, auto, scheduled-switch
Wide Dynamic Range (WDR)
120 dB
SNR
52 dB
Defog
Digital defog
Image Stabilization
EIS
Image Enhancement
BLC, HLC, 3D DNR
Privacy Mask
[Bullet] 8 masks, [PTZ] 24 masks; color or mosaic configurable
Regional Focus
Yes
Regional Exposure
Yes
Interface
Ethernet Interface
RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage
Micro SD/SDHC/SDXC slot, up to 256 GB
Audio Interface
1 input (2.02.4Vp-p, 1kΩ ±10%), 1 output (line level, 600Ω)
Alarm Interface
1 alarm input, 1 alarm output
Reset
Yes
Event
Basic Event
[PTZ] Motion detection, tampering alarm; [PTZ & Bullet] Alarm I/O, exception alarms (e.g., IP conflict, HDD full/error, illegal login, network disconnect)
Smart Event
[PTZ & Bullet] Audio exception
[PTZ] Line crossing, intrusion, region entrance/exit
[Bullet] Line crossing, intrusion, region entrance/exit
Linkage Method
FTP/NAS/memory card upload, surveillance center notification, email, alarm output, recording, audio warning, PTZ actions
Smart Linkage
Panorama Linkage
Smart Functions
Face Capture
Detects up to 5 faces, supports tracking, grading, selection, best-shot output
People Counting
Regional people counting supported
General
Power
12VDC, PoE+
Dimension
Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
Weight
Approx. 2.4 kg (5.3 lb)
Material
ADC12
Operating Conditions
-30°C to 65°C (-22°F to 149°F), Humidity < 90% RH
General Functions
Mirror, Watermark, Password Protection
Demist
Glass heating
Power Consumption
Max. 24 W (Heater: Max. 2.6 W, Light: Max. 11 W)
Approvals
Protection
IP66, 6000V Lightning Protection, Surge and Voltage Transient Protection
